FAB Equipment

Facility

  • Incoming Water Deionization Treatment
  • Outgoing Water Treatment System
  • Centralized Vacuum
  • Centralized Compressed Air
  • Networked Computer System with RAID storage and redundant internet connections
  • Workstation Computers & Servers



Engineering

  • 12 Pentalogix CAM Master, Probe Master, Rout Master, View Master Plus)
  • 11 Frontline GenFlex (Genesis with Flex Options)
  • 9 Frontline InCAM Pro (Flex version)
  • 2 Frontline InSight
  • Tektronics TDR Impedance
  • Multiple proprietary Impedance calculators
  • Polar Si9000 with Speedstack Si
  • ERP Bacon Software (JQS, JTS, JIS, Track)
  • TrueChem



Imaging

  • Orbotech Nuvogo 780XL Laser Direct Imaging (LDI)
  • Orbotech Paragon 8800hi Laser Direct Imaging (LDI)
  • Orbotech 9008 Laser photoplotter
  • Orbotech Dimension AOI
  • Orbotech Fusion 22 AOI
  • Hukto CLS 1500B Inner layer cut sheet laminator
  • 3 DuPont hot roll laminators
  • Tacky roller debris remover
  • Colight 1330 Exposure Systems with Precision Artwork Frames
  • Chemcut Horizontal Chemical Clean Line
  • Chemcut Xli horizontal developer with automatic controls
  • Chemcut 2000 horizontal cupric chloride etcher with automatic controls
  • Chemcut Xli horizontal ammonia alkaline etcher with automatic controls
  • Chemcut 2000 horizontal solder stripper
  • Chemcut horizontal resist stripline



Lamination

  • Cobrabond alternative oxide line
  • 2 OEM Press Systems, 6 opening vacuum lamination presses
  • OEM Press Systems, 6 opening cool down press
  • Caul plate cleaner
  • Cleanroom layup area
  • Darwin environmental storage unit
  • SPX Blue M environmental storage unit



Drilling / Routing

  • Pluritec Inspecta Combo HPL (X-ray vision drill machine)
  • Pluritec Multistation EVO 2s High-Speed drill and rout
  • 2 Excellon Cobra Laser Drill / Rout machine UV/co2
  • Excellon 129 Intelli-Drill (High-Speed Spindle with Vision System)
  • Excellon 689 (six spindle machine)
  • 2 Excellon HS-1L-DS Precision Drilling
  • 5 Excellon Uniline 2000 drilling machine
  • Excellon Concept 1 drilling machine
  • 3 Excellon EX-300 rout machine
  • AccuScore AS-200 scoring machine
  • 2 HAAS VF2 (VF2YT) Vertical Machining machines for heavy copper, aluminum boards, and custom tooling
  • HAAS VF-4 Vertical Machining
  • Randol bevel master
  • 2 Drill Presses



Metalization

  • IPS horizontal Shadow Direct Metalization Line
  • 4 High Aspect Ratio Acid Copper Plating Baths
  • Solder plating bath
  • Tin plating bath
  • 2 Plasma Systems Etchback/Desmear
  • NTO-1824LF Hot Air Solder Level (HASL)
  • Electroless Nickel Immersion Gold Line & Immersion Palladium
  • Electrolytic Nickel Soft Gold & Hard Gold line
  • Immersion Silver line
  • Immersion Tin line



Soldermask / Legend

  • Orbotech Sprint 200 Inkjet Legend Printer
  • 2 screen tables
  • Colight 1630 kW. exposure systems
  • Chemcut 2000 horizontal LPI Soldermask developer & controller unit
  • Argus 9524S Spray LPI coater
  • Argus IR tunnel oven
  • Colight UVDS2 UV Cure system
  • Vacuum Laminator



Electrical Test / Inspection

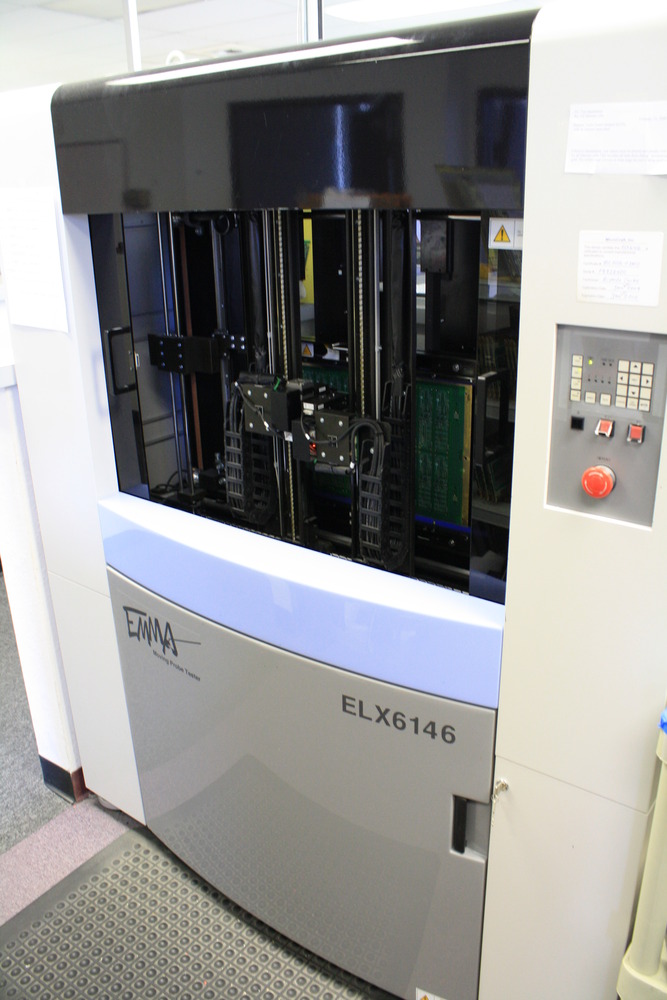

  • 3 Microcraft High-Speed Flying Probe
  • GCA MicroSpeed
  • Micro-Vu Video Measurement System (18"24")
  • CMI XRF plating measurement system
  • Assorted measuring gages & inspection devices
